<%NUMBERING1%>.<%NUMBERING2%>.<%NUMBERING3%> PRTG Manual: SNMP Dell PowerEdge System Health Sensor

The SNMP Dell PowerEdge System Health sensor monitors the system health of a Dell PowerEdge server via the Simple Network Management Protocol (SNMP).

SNMP Dell PowerEdge System Health Sensor

SNMP Dell PowerEdge System Health Sensor

i_square_cyanFor a detailed list and descriptions of the channels that this sensor can show, see section Channel List.

Sensor in Other Languages

  • Dutch: SNMP Dell PowerEdge Systeem Status
  • French: Dell PowerEdge état du système (SNMP)
  • German: SNMP Dell PowerEdge Systemzustand
  • Japanese: SNMP Dell PowerEdge システムの正常性
  • Portuguese: Funcionamento do sistema Dell PowerEdge (SNMP)
  • Russian: Работоспособность системы Dell PowerEdge по SNMP
  • Simplified Chinese: SNMP Dell PowerEdge 系统健康状况
  • Spanish: Salud de sistema Dell PowerEdge (SNMP)

Remarks

Detailed Requirements

Requirement

Description

Dell OpenManage Server Administrator or iDRAC 7

This sensor needs the Dell OpenManage Server Administrator (OMSA) tool to be installed on the target device to monitor it. Make sure that you enable SNMP in the OMSA.

i_square_cyanFor details, see the Knowledge Base: What do I need to monitor Dell servers?

i_round_blueYou can also monitor Dell PowerEdge servers with this sensor via iDRAC 7.

Add Sensor

The Add Sensor dialog appears when you manually add a new sensor to a device. It only shows the settings that are required to create the sensor. You can change nearly all settings on the sensor's Settings tab after creation.

i_round_blueThe settings that you select in the Add Sensor dialog are valid for all sensors that you create when you finish the dialog.

Dell PowerEdge System Health Specific

Setting

Description

Chassis

Select the chassis that you want to monitor. PRTG creates one sensor for each chassis that you select.

i_round_blueEnable check boxes in front of the respective lines to select the items. Use the check box in the table header to select all items or to cancel the selection. In large tables, use the search function in the upper-right corner.

Basic Sensor Settings

Click the Settings tab of a sensor to change its settings.

Basic Sensor Settings

Basic Sensor Settings

Setting

Description

Sensor Name

Enter a name to identify the sensor.

Parent Tags

Shows tags that the sensor inherits from its parent device, parent group, and parent probe.

i_round_blueThis setting is for your information only. You cannot change it.

Tags

Enter one or more tags. Confirm each tag with the Spacebar key, a comma, or the Enter key. You can use tags to group objects and use tag-filtered views later on. Tags are not case-sensitive. Tags are automatically inherited.

i_round_blueIt is not possible to enter tags with a leading plus (+) or minus (-) sign, nor tags with parentheses (()) or angle brackets (<>).

i_round_blueFor performance reasons, it can take some minutes until you can filter for new tags that you added.

The sensor has the following default tags that are automatically predefined in the sensor's settings when you add the sensor:

  • snmpdellsystemhealthsensor
  • systemhealth
  • snmpdell
  • dell

Priority

Select a priority for the sensor. This setting determines the position of the sensor in lists. The highest priority is at the top of a list. Choose from the lowest priority (i_priority_1) to the highest priority (i_priority_5).

i_round_blueUsually, a sensor connects to the IP Address/DNS Name of the parent device. See the device settings for details. For some sensors, you can explicitly define the monitoring target in the sensor settings.

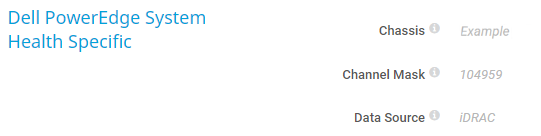

Dell PowerEdge System Health Specific

Dell PowerEdge System Health Specific

Dell PowerEdge System Health Specific

Setting

Description

Chassis

Shows the chassis that this sensor monitors.

i_round_bluePRTG shows this value for reference purposes only. If you need to change this value, add the sensor anew.

Channel Mask

Shows the channel mask that describes which channels are available.

i_round_bluePRTG shows this value for reference purposes only. If you need to change this value, add the sensor anew.

Data Source

Shows the interface that PRTG uses to get monitoring data. This is either Dell OMSA or iDRAC.

Sensor Display

Sensor Display

Sensor Display

Setting

Description

Primary Channel

Select a channel from the list to define it as the primary channel. In the device tree, the last value of the primary channel is always displayed below the sensor's name. The available options depend on what channels are available for this sensor.

i_round_blueYou can set a different primary channel later by clicking b_channel_primary below a channel gauge on the sensor's Overview tab.

Graph Type

Define how different channels are shown for this sensor:

  • Show channels independently (default): Show a graph for each channel.
  • Stack channels on top of each other: Stack channels on top of each other to create a multi-channel graph. This generates a graph that visualizes the different components of your total traffic.
    i_round_redYou cannot use this option in combination with manual Vertical Axis Scaling (available in the channel settings).

Stack Unit

This setting is only visible if you enable Stack channels on top of each other as Graph Type. Select a unit from the list. All channels with this unit are stacked on top of each other. By default, you cannot exclude single channels from stacking if they use the selected unit. However, there is an advanced procedure to do so.

Inherited Settings

By default, all of these settings are inherited from objects that are higher in the hierarchy. We recommend that you change them centrally in the root group settings if necessary. To change a setting for this object only, click b_inherited_enabled under the corresponding setting name to disable the inheritance and to display its options.

i_square_cyanFor more information, see section Inheritance of Settings.

Scanning Interval

Scanning Interval

Scanning Interval

i_square_cyanFor more information, see section Root Group Settings, section Scanning Interval.

Schedules, Dependencies, and Maintenance Window

i_round_blueYou cannot interrupt the inheritance for schedules, dependencies, and maintenance windows. The corresponding settings from the parent objects are always active. However, you can define additional schedules, dependencies, and maintenance windows. They are active at the same time as the parent objects' settings.

Schedules, Dependencies, and Maintenance Window

Schedules, Dependencies, and Maintenance Window

i_square_cyanFor more information, see section Root Group Settings, section Schedules, Dependencies, and Maintenance Window.

Access Rights

Access Rights

Access Rights

i_square_cyanFor more information, see section Root Group Settings, section Access Rights.

Channel Unit Configuration

i_round_blueWhich channel units are available depends on the sensor type and the available parameters. If no configurable channels are available, this field shows No configurable channels.

Channel Unit Configuration

Channel Unit Configuration

i_square_cyanFor more information, see section Root Group Settings, section Channel Unit Configuration.

Channel List

i_round_blueWhich channels the sensor actually shows might depend on the target device, the available components, and the sensor setup.

Channel

Description

Ampere Status

The ampere status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Battery Status

The battery status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Chassis Status

The chassis status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Cooling Device Status

The cooling device status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Cooling Unit Status

The cooling unit status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Downtime

In the channel table on the Overview tab, this channel never shows any values. PRTG uses this channel in graphs and reports to show the amount of time in which the sensor was in the Down status in percent.

Global System Status

The global system status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

i_round_blueThis channel is the primary channel by default.

Intrusion Status

The intrusion status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Memory Device Status

The memory device status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Power Supply Status

The power supply status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Power Unit Status

The power unit status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Processor Status

The processor status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Temperature Status

The temperature status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown

Voltage Status

The voltage status

  • Up status: OK
  • Warning status: Non Critical
  • Down status: Critical, Non Recoverable, Other, Unknown
